This article and maps by Brett Lucas and Stewart Berry explores how to use one of Maptitude’s latest add-ins for “Land Use Mix.” Land use mix calculations are useful to local municipalities in quantifying access to services.

Introduction

The Land Use Mix tool looks at a specific land use category and compares that to other types within the same geography. This entropy measure quantifies the balance of types using a score of 0 to 1 to describe equitable access.

The primary application of the tool is for zoning or with Comprehensive Plan land use maps. Typically, a zoning layer is measured using a GIS (Geographic Information System) and we use Maptitude Mapping Software in this analysis.


Free weekly newsletter

Fill out your e-mail address to receive our newsletter!
Email:

Why do a “Land Use Mix” Analysis?

Descriptions of the characteristics of the built environment assist in determining accessibility, and aid in assessment of urban form. Determining the relationship of urban form with levels of accessibility requires measures that allow contrasts in urban environments to be described.

Features such as pedestrian-oriented design, high levels of public transport, and the proximity to destinations (such as services and jobs) could reasonably be expected to influence the mode of transportation. Such measures can also assist in healthcare geoaccess reports.

The Land Use Mix or Entropy measure is widely used in determining the accessibility balance. A simplifying assumption here is that a community has distinct land use zones (i.e., low density residential, high density residential, commercial, industrial, etc.).

Scenario

We will be looking at the City of Spokane Valley, Washington as an example in this case study. Spokane Valley is a community of 103,000 people, located just east of the City of Spokane.

The City of Spokane Valley incorporated on March 31, 2003. The city was formed from combining the urbanized unincorporated areas east of Spokane, including the census-designated places (CDPs) of Dishman, Opportunity, Trentwood, Veradale, and portions of Greenacres, and East Spokane.

This research looks at some of the Comprehensive Plan Land Use Designations (i.e., Industrial, Commercial-mixed Use, and Parks/Recreation/Open Space) to determine how accessible these land use designations are in relation to the Single-Family Residential Designation.

To assess “accessibility,” we are using the Census Block Group Layer (from Maptitude). For a community of this size, Block Groups offer a level of granularity that is appropriate for the scale of the analyses as compared to the Tract or Block Level. Depending on your community and the analysis you are doing, the Block Group level may or may not be appropriate.

While this scenario is using the Comprehensive Plan Land Use Designations (more generalized in detail), this approach may be used with Zoning Districts which tend to be smaller in size and more detailed.

How to Approach the Analysis

  1. Have access to Comprehensive/General Plan land use designations or Zoning Districts in a digital format. This is often available form a local jurisdiction’s website in the form of a downloadable shapefile.
  2. Have a layer to perform the accessibility analysis against. This can be a grid (i.e., quarter mile), or some other defined geography such as a Census Tract, Census Block Group, or Census Block level. ZIP Codes are generally too large of a geography, unless located in a very urbanized area with high population densities. Pick a geography that is appropriate for the area you are studying, while trying not to be overly granular or generalized.

How to Gather Land Use Data

In this case, we gathered Comprehensive Plan designation data from the City of Spokane Valley’s GIS Department. We had the option of a shapefile or an ESRI geodatabase, both of which can be used with Maptitude.

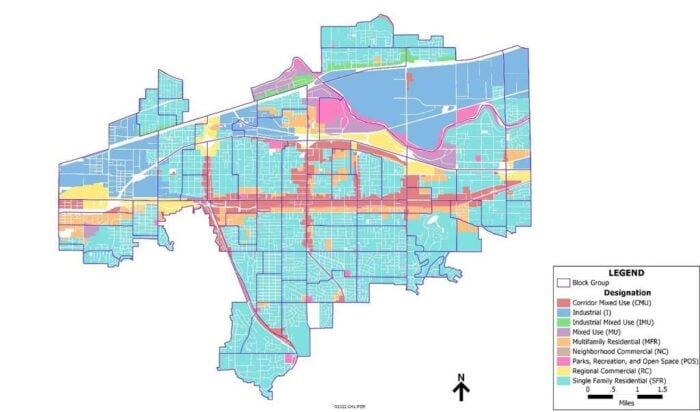

A map showing the area of Spokane Valley in Washington with pastel shades for the land use types.
Map: Maptitude Workspace – Study Area (Spokane Valley, WA) – Land Use Designations Mix.

How to Run the Entropy Analysis

Industrial vs. Single-family Residential

After bringing in the Comprehensive Plan Land Use Designations layer, the next step is to restrict (“clip”) your analysis geography layer to the same geography as your land use. In this example, we clipped the Census Block Group Layer.

Next, make the “clipped” Census Block Group layer the working layer

Next, click on “Tools” tab, scroll down to “add-ins” and select Land Use Mix, if you have already installed the add-in on your computer. If you do not have the tool, go to the Maptitude website to download the tool for free if you are running Maptitude 2022 or newer.

Before running the “Land Use Mix” tool, your screen should look something like this (Map 3) with your land use and analysis layers.

Map of Spokane Valley with pastel colors for land use categories and light blue lines for census block groups.
Map: Maptitude Workspace – Land Use Designations Mix and Census Block Groups.

Once you click on the “Compute Entropy Index” add-in tool, you will see the following dialogue box.

Screenshot of the landuse GUI in Maptitude.
Figure: Land Use Mix Dialogue Box – Industrial vs. Single-Family Residential.

Dialogue Box

  1. Zones: This is the results layer of your analysis. In this case we are using the “Census Block Group” layer.
  2. Landuse (Diversity/Mix/Entropy): This should be the layer with your land use designation or zoning districts.
  3. Records: This should be showing “All Features,” though you could have a selection set for a specific sub area or smaller geography. In this case, we are using the default.
  4. Field: You will most likely have multiple fields in your “Landuse” layer. In this case we are using the “Designation” field
  5. Values in Designation: For this example, will be Industrial and Single-Family Residential. Add or remove fields as appropriate in your own analysis.
  6. Display Options: By default, both theme (thematic map output) and 3D Figure are checked. For this example, they are both left checked.
  7. Click “OK” and run the tool. It may take a minute or two for the computer to process the entropy for both of the land use layers that you are comparing.

Output Map

By default, the output map will use a light red to dark red color ramp to show the level of entropy. We changed the output color theme to a red to purple color ramp and reduced the optimal breaks from ten to six.

Entropy measures accessibility on a scale of 0 to 1, with 0 having virtually no accessibility and 1 having relatively full accessibility. In this example, most areas of Single-Family Residential next to other areas of Single-Family Residential will have low accessibility to Industrial and will have a low score (i.e., 0.20), and by proxy lower access than other areas to industrial employment.

Single-Family Residential areas that are closer to Industrial or abut up against an Industrial land use designation will have a higher score. In this example, Single-Family Residential zones located on the northside of Spokane Valley are closer geographically to Industrially designated land uses, and therefore will have an entropy score between 0.30 and 0.90.

A land use entropy map of Spokane Valley with most of the map shaded red.
Map: Maptitude Workspace – “Land Use Mix” – Industrial vs. Single-family Residential – Output map showing measures of entropy on the Census Block Group layer.

Alternatively, the thematic output map can also be shown as a chart, showing the same information in a 3D perspective. Depending on your audience, this output could be useful and can help identify outliers not apparent in a 2D map.

A 3D map from an angled perceptive with dark red areas higher and pink areas lowest.
Map: Maptitude Workspace – “3D Figure” showing measures of entropy on the Census Block Group layer.

Running Entropy for other Land Use Scenarios

Neighborhood Commercial vs. Single-Family Residential

Next, we will run the “Land Use Mix” tool for other land use interactions. Again, make the “Block Groups” your working layer. For the Neighborhood Commercial verses Single-Family Residential analysis, your dialogue box will look like this:

Maptitude landuse GUI showing commercial and residential designations.
Figure 2 – Land Use Mix Dialogue Box – Neighborhood Commercial vs. Single-Family Residential.

The output map for this land use interaction shows a higher entropy for the Single-Family Residential designations located near the center of Spokane Valley, which is where some of the Neighborhood Commercial land use designations are located along the Sprague Avenue corridor, and so have better access to shopping for example.

A commercial and residential land use map for Spokane Valley with shades of red, green, and yellow.
Map: Maptitude Workspace – “Land Use Mix” – Neighborhood Commercial vs. Single-Family Residential – Output map showing measures of entropy on the Census Block Group layer.
A 3D map with blocks in shades of red and pink.
Map: Maptitude Workspace – “3D Figure” showing measures of entropy on the Census Block Group layer.

Neighborhood Commercial vs. Parks/Recreation/Open Space

Finally, we will run the “Land Use Mix” tool for Parks/Recreation/Open Space layer verses the Single-Family Residential analysis.

Your dialogue box will look like this.

Screenshot showing the parameters in Maptitude for designating parks and open space.
Figure: Land Use Mix Dialogue Box – Parks/Recreation/Open Space vs. Single-Family Residential.

The output map for this land use interaction shows a higher entropy for the Single-Family Residential designations located near Parks and Open Space.

Since parks and open space are scattered throughout the community, the entropy output is the most diverse showing that many Single-Family Residential land use designations have access to parks and open space, except those that are located near the I-90 corridor.

Map of Spokane Valley Washginton with shades of reds, purple, green, and yellow.
Map: Maptitude Workspace – “Land Use Mix” – Parks/Recreation/Open Space vs. Single-Family Residential – Output map showing measures of entropy on the Census Block Group layer.
3D map of Spokane Valley with shades of red and pink.
Map: Maptitude Workspace – “3D Figure” showing measures of entropy on the Census Block Group layer.

Conclusion

Land Use Mix/Entropy is an extremely useful tool for analyzing and measuring accessibility and for exploring changes based on various underlying assumptions. For example, let’s say you have three vacant pieces of land in your community, and you wanted to see which one, if developed, as a park would provide the most accessibility to nearby residential housing. This provides an analytical tool to prioritize which site to potentially develop.

To take the Land Use Mix/Entropy analysis to the next level, one could add additional fields that measure levels of attractiveness (i.e., trails, ball fields, play structures, etc.) and run the model based on that to better refine your analysis on the best site.

Have fun exploring other Land Use Mixes with this add-in tool in Maptitude!
