Monitoring and Mapping Microplastics in Marine Ecosystems

Claudia Windeck


Plastics are ever prevalent and have been an indispensable part of our lives for the last 50 years. As a result, the production and over-consumption of this material has led to a significant increase in global plastic production and subsequent disposal over the last two decades.

What kind of plastic ends up in the oceans?

However, due to poor waste management practices all around the world, a substantial amount of plastics, ranging from macro (>25mm) to nano (<100nm) sizes, ends up in marine ecosystems. In particular, microplastics are particles of between 1 to 5mm that originate mainly from primary sources such as textile fibres, cosmetic microbeads, and manufacturing residues, or secondary sources such as the breakdown of larger plastic pieces [1].

These plastic particles occur in varying chemical composition, and have different properties, buoyancies and spectral wavelengths. The most commonly found microplastic polymers include polyethene (PE), polypropylene (PP), polyvinylchloride (PVC), polystyrene (PS), and polyamide (PA) which all break down under the influence of UV radiation, sea salinity, and abrasion due to, e.g. waves [2].

Plastics of various types and sizes gathered from the Kinnickinnic River in Milwaukee, Wisconsin.
Plastics of various types and sizes gathered from the Kinnickinnic River in Milwaukee, Wisconsin. Photo: S. Mason, State University of New York at Fredonia. Public domain. Source: USGS.

The unique spectral characteristics of these different plastic polymers in the near-infrared (NIR) to short-wavelength infrared (SWIR) spectra are nowadays widely used in optical sorting processes in the waste industry [4]. Despite this, a robust and comprehensive analysis of the spatial extent of micro-sized polymers in the marine environment is still lacking due to the inability of current airborne tools to reliably assess global distribution patterns and accumulations [3].

Free weekly newsletter

Fill out your e-mail address to receive our newsletter!

As a result, there is a clear need for advancements in this field as remote sensing imagery offers the high temporal, spectral and spatial resolutions of the ocean surface needed to quantify the amount of microplastic pollution floating in the sea surface layers.

Research to map and measure plastic pollution in the ocean

Due to a rise in global awareness and advancements in technology, researchers are now engaged in a variety of projects and studies. One of the most recent studies in this field examined the optical properties of microplastics in correlation with the enhanced reflectance in ocean color imagery to improve the assessment of its detection and quantification in the visible and infrared wavelengths.

The study was conducted by Garaba and Dierssen and assessed the spectral reflectance of microplastic from the North Atlantic Ocean. They found that spectral reflectances “could be represented as a single bulk average spectrum with notable absorption features at ~931, 1215, 1417 and 1732 nm” [3], thereby having a similarity to the spectra of polymers known from the waste industry [5].

Figure 1: Normalized reflectance of the marine-harvested microplastics bulk mean, virgin pellets of low-density polyethylene (LDPE), polyethylene terephthalate (PET), poly- propylene (PP) and polymethyl methacrylate (PMMA). Taken from Garaba and Dierssen (2018).
Figure 1: Normalized reflectance of the marine-harvested microplastics bulk mean, virgin pellets of low-density polyethylene (LDPE), polyethylene terephthalate (PET), poly- propylene (PP) and polymethyl methacrylate (PMMA). Source: Garaba and Dierssen (2018).

Using Remote Sensing to Assess Ocean Color

However, another crucial factor, namely ocean color, has to be taken into account for the successful assessment of microplastic abundance and distribution patterns in the seas and other bodies of water. Emberton and colleagues gave an overview of multispectral and hyperspectral remote sensors for ocean color on satellites [6] which also frequently carry other instruments that are useful for the detection of marine plastics.

One example is with the Sentinel-3 satellite, which carries the ‘Ocean and Land Cover Instrument’ (OLCI). This instrument has 21 bands in the range of 0.4–1.02 μm, but Sentinel-2 also carries the Sea and Land Surface Temperature Radiometer (SLSTR) that comprises nine bands in the spectrum of 0.55–12 μm [7].

These instruments allow for the application of particle-tracking models as well as ocean surveys in general, hopefully leading to a reflectance model showing accurate distributions of marine microplastics.

Using Earth Observation Techniques to Map Plastic Debris Accumulation

The European Space Agency (ESA) is responding to the problem of marine plastic pollution and the potential for earth observation techniques to determine accumulations and distribution of this gigantic problem.

ESA is tackling the issue by the launch of their new program ‘OptiMAL’ – short for ‘Optical Method for Marine Litter Detection’ – that uses data derived from Sentinel-3’s OLCI and SLSTR instruments to detect not only macro debris but also microplastics which are suspended in the sea surface layers [10].

When more mature, this monitoring approach will be able to provide accurate and near-time global measurements and thus be a powerful tool in the scientific context. The ‘power of the picture’ is then hopefully able to raise politic as well as public awareness and thereby increase the participation for mitigation and remediation of a significant global problem.

Analyzing How Ocean Currents Distribute Plastic Particles

Another issue that needs to be addressed is the more detailed observation of ocean dynamics and sea surface currents in particular. This is a factor which is currently not directly measured by existing Earth observation systems [8] but instead by tracking drifting buoys.

In the seas, microplastics are, depending on their buoyancy, either floating in the sea surface layer or are suspended in the water column [9].

Global ocean circulation, mainly driven by the five subtropical gyres, and coastal currents enable the long-distance transport of these plastic particles in complex patterns due to seasonal and local variations. These circulation pathways account for the associated risks of marine microplastic pollution due to their spatial and temporal distribution.

Figure 2: Track-mapping of plastic litter hotspots in global oceans. Taken from ESA (2018)
Figure 2: Track-mapping of plastic litter hotspots in global oceans. Source: ESA (2018).

Further Geospatial Technology Needs for Monitoring Plastic Pollution in Oceans

Therefore, there is not only a need to further develop ocean color sensors as well as the confinement of spectral reflectance of different types of microplastics in the oceans, but also the need to fill the gap in our observational capabilities from space to determine sea surface currents. This is in particular valid for boundary habitats such as frontal zones, which are known to be hot spots of surface polymer aggregation [3].

One of the two finalists of the proposal to be the ESA’s Earth Explorer 9, launching in 2025, is the Sea Surface Kinematics Multiscale Monitoring (SKIM) mission that has been developed by the ‘French Institute For Oceanic Research’ (Ifremer). SKIM is designed to explicitly detect and measure sea surface currents, ice drifts as well as waves by using an innovative Doppler Ka-band radar.

SKIM will estimate the ocean surface velocity vector by using satellite Doppler oceanography as well as ocean wave spectra. This new era of sea surface current assessment would make a significant improvement in the detection of microplastic carrying currents and ocean dynamics in general by covering not only global oceans but also regional seas [11].

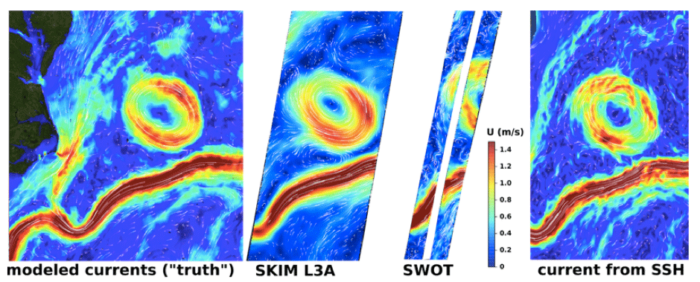

Figure 3: SKIM swath vs SWOT: simulated currents and expected measurement by SKIM (possible launch in 2025) and SWOT (due for launch in 2021). Source: Ifremer (2017).
Figure 3: SKIM swath vs SWOT: simulated currents and expected measurement by SKIM (possible launch in 2025) and SWOT (due for launch in 2021). Source: Ifremer (2017).

In this context, the need for interdisciplinary science is more important than ever in order to gather the pieces together for the big picture. The good news is that accurate high resolution and temporal maps of marine microplastic distribution can be created in the near-future by using satellite remote sensing techniques based on multiple-source input data such as an updated spectral library for marine plastics in combination with an accurate understanding of detailed near-time sea surface current data.

We hope that recent advancements within the field of Earth Observation and the growing institutional support for the development of applications are boosting the improvements of spaceborne remote sensing techniques to raise global awareness for marine microplastic pollution.


[1] Yonkos, L. T., Friedel, E. A., Perez-Reyes, A. C., Ghosal, S., & Arthur, C. D. (2014). Microplastics in four estuarine rivers in the Chesapeake Bay, USA. Environmental science & technology, 48(24), 14195-14202.

[2] Goddijn-Murphy, L., Peters, S., van Sebille, E., James, N. A., & Gibb, S. (2018). Concept for a hyperspectral remote sensing algorithm for floating marine macro plastics. Marine Pollution Bulletin, 126, 255-262.

[3] Garaba, S. P., & Dierssen, H. M. (2018). An airborne remote sensing case study of synthetic hydrocarbon detection using short wave infrared absorption features identified from marine-harvested macro-and microplastics. Remote Sensing of Environment, 205, 224-235.

[4] Moroni, M., Mei, A., Leonardi, A., Lupo, E., & Marca, F. L. (2015). PET and PVC separation with hyperspectral imagery. Sensors, 15(1), 2205-2227.

[5] Maximenko, N., Arvesen, J., Asner, G., Carlton, J., Castrence, M., Centurioni, L., … & Crowley, M. (2016, January). Remote sensing of marine debris to study dynamics, balances and trends. In Community White Paper Produced at the Workshop on Mission Concepts for Marine Debris Sensing.

[6] Emberton, S., Chittka, L., Cavallaro, A., & Wang, M. (2015). Sensor capability and atmospheric correction in ocean color remote sensing. Remote Sensing, 8(1), 1.

[7] ESA (2017) Sentinel online, user guides, available online: sentinel/user-guides, accessed: 10.05.2018

[8] Rodriguez, E., et al., 2016: Air-sea exchange drivers of climate variability, ocean circulation, and weather: a case for coincident observations of ocean surface winds and currents, white paper in response to ESAS 2017 RFI #2.

[9] Zhang, H. (2017). Transport of microplastics in coastal seas. Estuarine, Coastal and Shelf Science.

[10] ESA (2017) Investigating Detection of Floating Plastic Litter from Orbit, available online:, accessed: 10.05.2018

[11] Ifremer (2017) Sea surface Kinematics Multiscale monitoring: a proposal for ESA’s Earth Explorer 9, available online:, accessed: 10.05.2018
